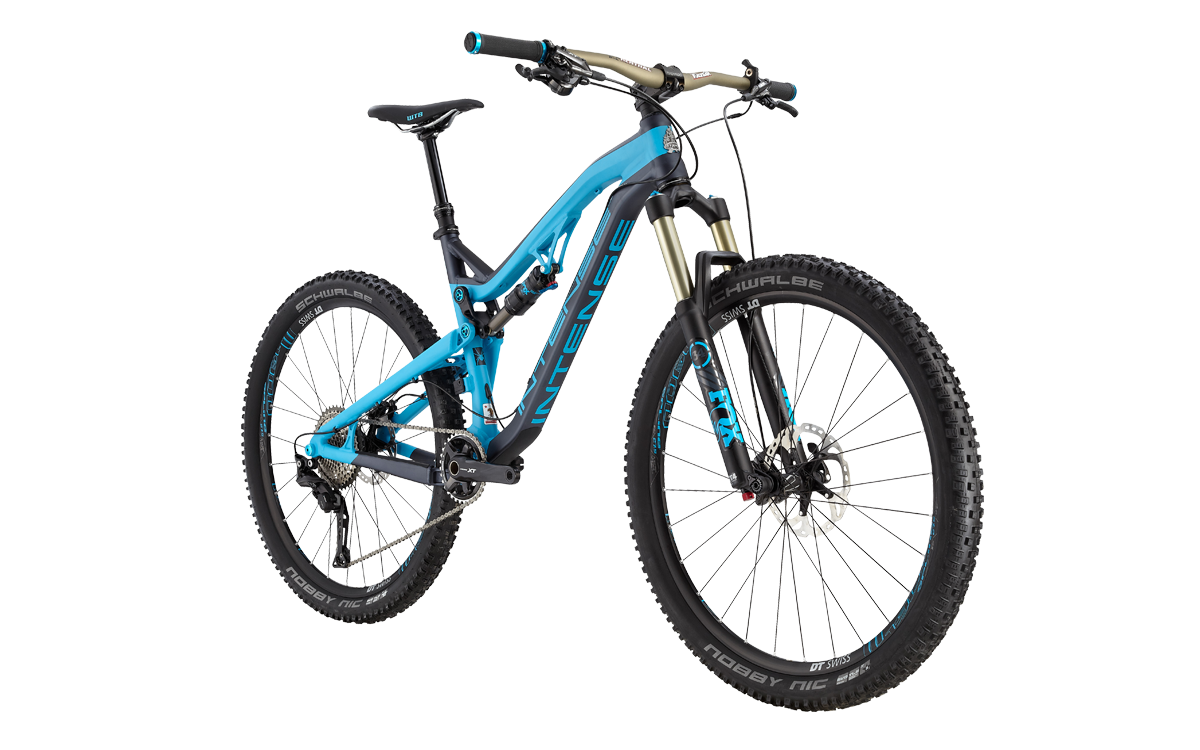

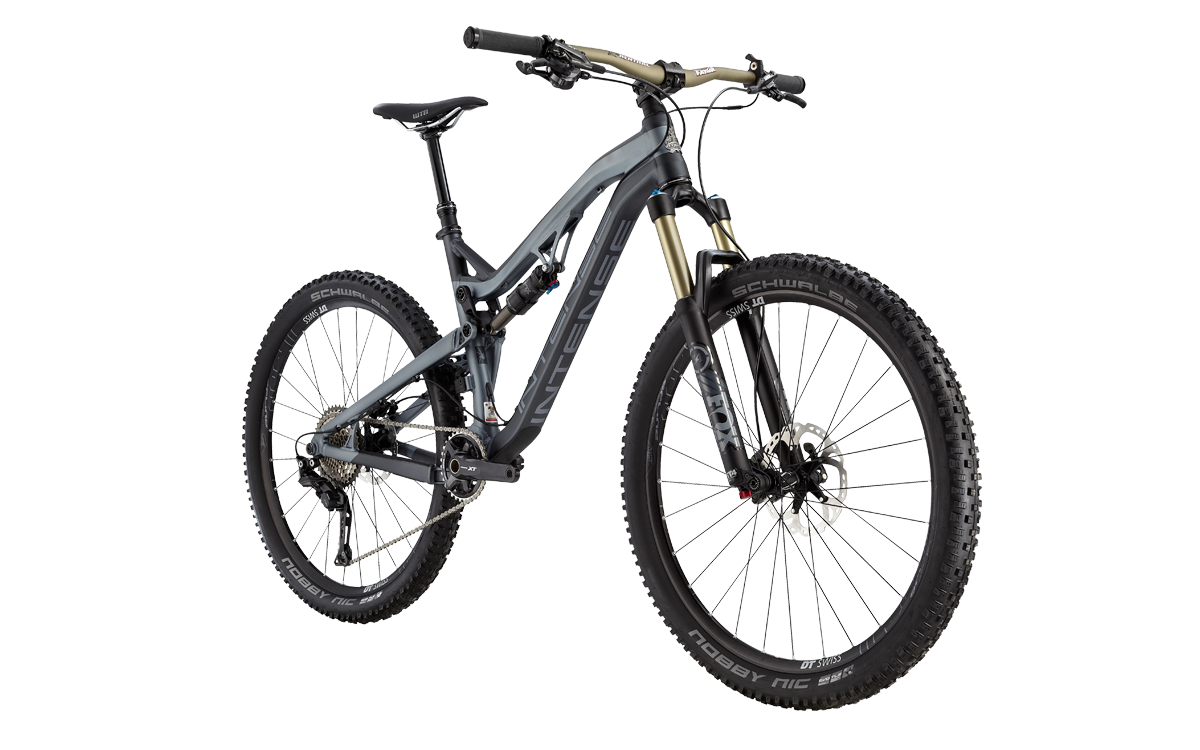

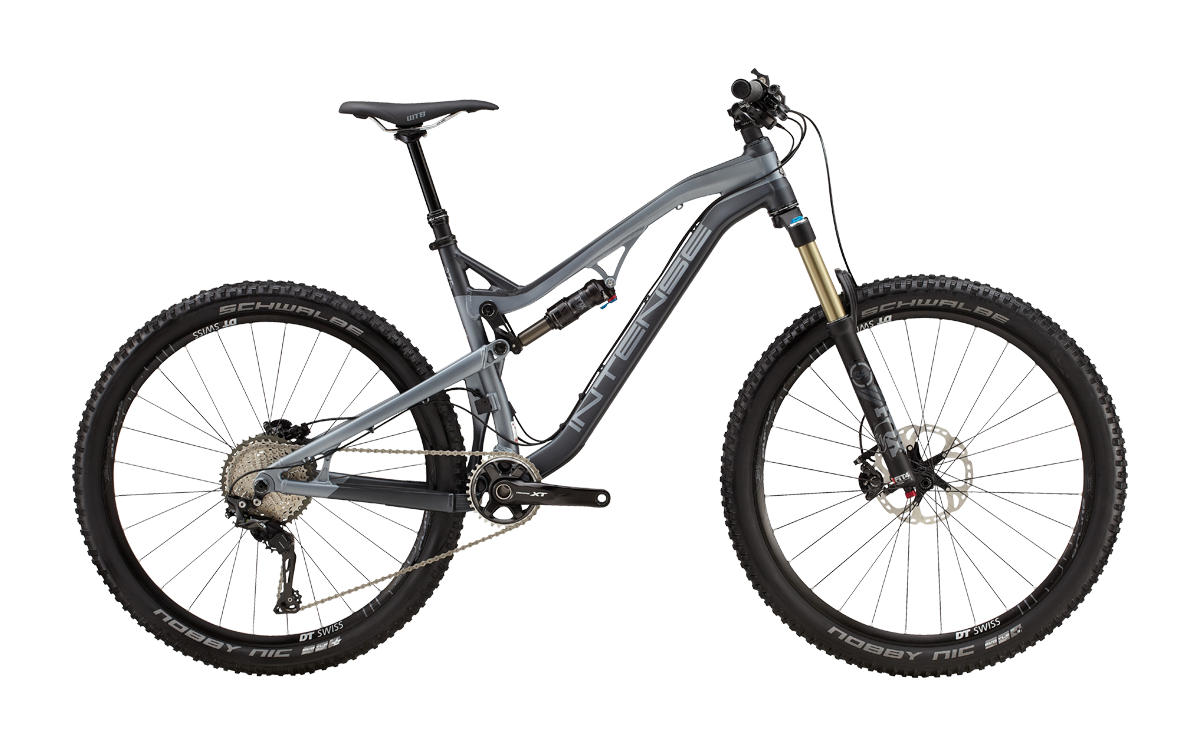

2018, Intense, Spider 275A Expert Build
Years Made
2018
2018 Intense Spider 275A Expert Build
Bicycle Type
Mountain dual suspension
MSRP USD (new)
Not Available
Weight
Not Available
Sizes
SM, MD, LG, XL
Colors
Black/Cyan, Black/Grey
Item ID
9259081
Compare
Review
Specifications
Description
Reviews
Frame & Fork
Frame Construction
Spider 275 Hydroformed Alloy Front and Rear Triangle 275” Mountain Frameset, JS Tuned Suspension, i-BOX Pivot System, Downtube Flak Guard Armor, 115 -130 mm travel
Frame Material
Aluminum
Fork
FOX Performance 34 FLOAT, 3 Pos Lever w/ Open Mode Adj, 27.5", 130 mm
Fork Materal
Alloy
Rear Shock
FOX Performance FLOAT, SV EVOL
Components
Component Group
Shimano XT
Brakeset
Shimano XT Hydraulic Disc, 180 mm front and 160 mm rear
Shift Levers
Shimano DEORE XT
Front Derailleur
None
Rear Derailleur
Shimano DEORE XT, RD-M8000, SGS 11-SPEED TOP-NORMAL SHADOW PLUS DESIGN
Crankset
Shimano Deore XT, 11 speed, 32T
Pedals
Not Available
Bottom Bracket
BSA (threaded)
BB Shell Width
73mm
Rear Cogs
Shimano DEORE XT, 11-speed, 11-42
Chain
Shimano 11 speed
Seatpost
Kindshock LEV Integra, 31.6mm x 385 mm, zero offset, 125 mm of travel
Saddle
WTB Silverado Race
Handlebar Extensions
Not Available
Handlebars
Renthal Fatbar 20mm x 740 mm
Handlebar Stem
Thomson Elite X4: 50mm
Headset
Cane Creek, 40, alloy cartridge, 25 mm of spacers
Wheels
Wheel Size
27.5
Hubs
DT Swiss M1900
Rims
DT Swiss M1900
Front Tire
SCHWALBE NOBBY NIC SNAKESKIN, TL-EASY, PSC FOLDING 27.5 x 2.35"
Rear Tire
SCHWALBE NOBBY NIC SNAKESKIN, TL-EASY, PSC FOLDING 27.5 x 2.25"
Spoke Brand
DT Competition 2.0/1.8/2.0
Spoke Nipples
DT Swiss
The Spider 275 Alloy is our 275 wheel-size, 130mm rear travel light trail bike for fast, flowy trails and overall fun riding. With the suspension link nested directly above the bottom bracket, the design allows for the bike to have super-short chainstays to make the bike nimble with a shorter wheelbase.
